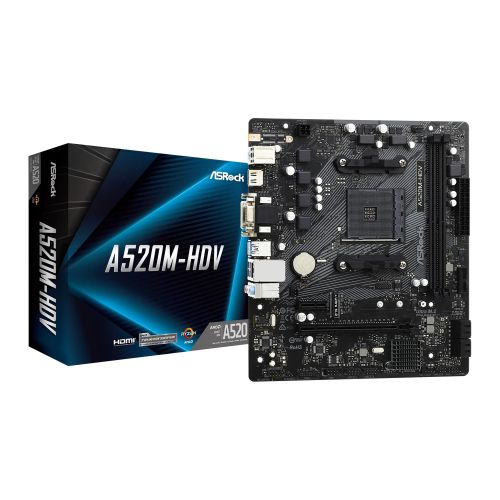

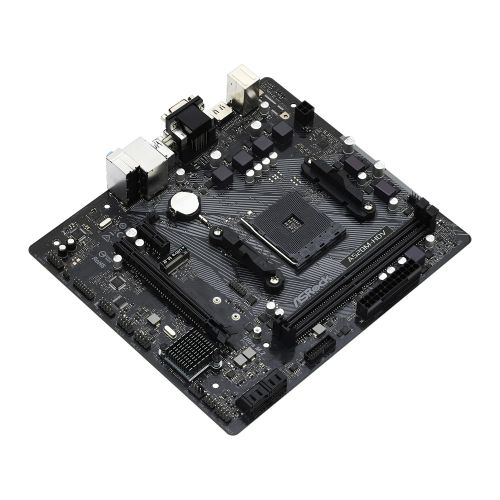

Asrock A520M-HDV, AMD A520, AM4, Micro ATX, 2 DDR4, VGA, DVI, HDMI, M.2

Asrock A520M-HDV, AMD A520, AM4, Micro ATX, 2 DDR4, VGA, DVI, HDMI, M.2

In Stock

Stock Code:
  AL-C-MB-ASROCK-A520M-HDV

Mfr:
  AsRock

Mfr Code:
  A520M-HDV

Mfr Link:
   AsRock
EAN:
  4710483932267

Quick Find:
  8001
£55.00

  • Processor - Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors(3000 and 4000 Series Processors)
  • Power - 6 Phase Power Design
  • Memory - Supports DDR4 4733+ (OC)
  • Graphics Output Options #NAME?
  • Storage - 4 x SATA3, 1 x Ultra M.2(Gen3 x4 & SATA3)
  • Network #NAME?

  • Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3) The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.

  • HDMI 4k @60Hz Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.

  • 3 Graphics Outputs Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.

  • Premium 50A Power Choke Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

  • High Density Glass Fabric PCB High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

  • Sapphire Black PCB Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

Product Description Asrock A520M-HDV, AMD A520, AM4, Micro ATX, 2 DDR4, VGA, DVI, HDMI, M.2
Motherboard Type Desktop
Form Factor MicroATX
Socket AMD AM4
Chipset AMD A520
CPU Support See AMD website*Note: not compatible with Ryzen 5 3400G & Ryzen 3 3200G CPUs
RAM Technology DDR4 (Dual Channel)
RAM Slots 2 x Dimm
RAM Speed 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 MHz
Max RAM 64GB
Graphics Integrated Graphics Processor*Graphics specifications may vary between CPU types
Graphics Ports 1 x VGA1 x DVI-D1 x HDMI
Multi GPU Support -
PCI/PCI Express 1 x PCIe 3.0 x16 Slot (PCIE2: x16 mode), 1 x PCIe 3.0 x1
Storage 4 x SATA III
1 x M.2 (2242/2260/2280) - SATA & PCIe
RAID RAID 0, 1, 10
Wireless -
LAN GB LAN
Audio 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
USB ports Supported 6 x USB 3.2 Gen1 (4 at back, 2 at mid-board)
6 x USB 2.0 (2 at back, 4 at mid-board)

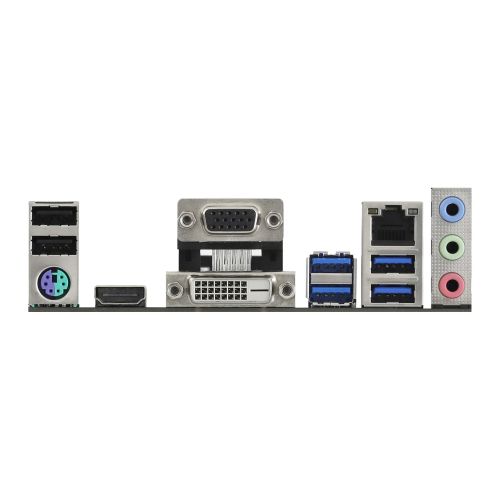

Back I/O Panel 1 x PS/2 Mouse/Keyboard
1 x D-Sub
1 x DVI-D
1 x HDMI
2 x USB 2.0/ 4 x USB 3.2 Gen1
1 x RJ-45 LANHD Audio Jacks
Internal I/O Panel 1 x SPI TPM
1 x COM Port
1 x Chassis Intrusion and Speaker
1 x CPU Fan
2 x Chassis Fan
1 x 24 pin ATX
1 x 4 pin 12V
1 x Front Audio
2 x USB 2.0
1 x USB 3.2 Gen1
Accessories 2 x SATA Data Cables1 x Screw for M.2 Socket
Windows 11 Ready Yes
Other Information For 3rd & 5th gen Ryzen CPUs only** Ryzen 5600G & 5700G CPUs may require a BIOS update **
Package Type Retail
Weight & Dimensions -
Package Weight 0.79
Warranty 2 Year Replacement Warranty
